Description

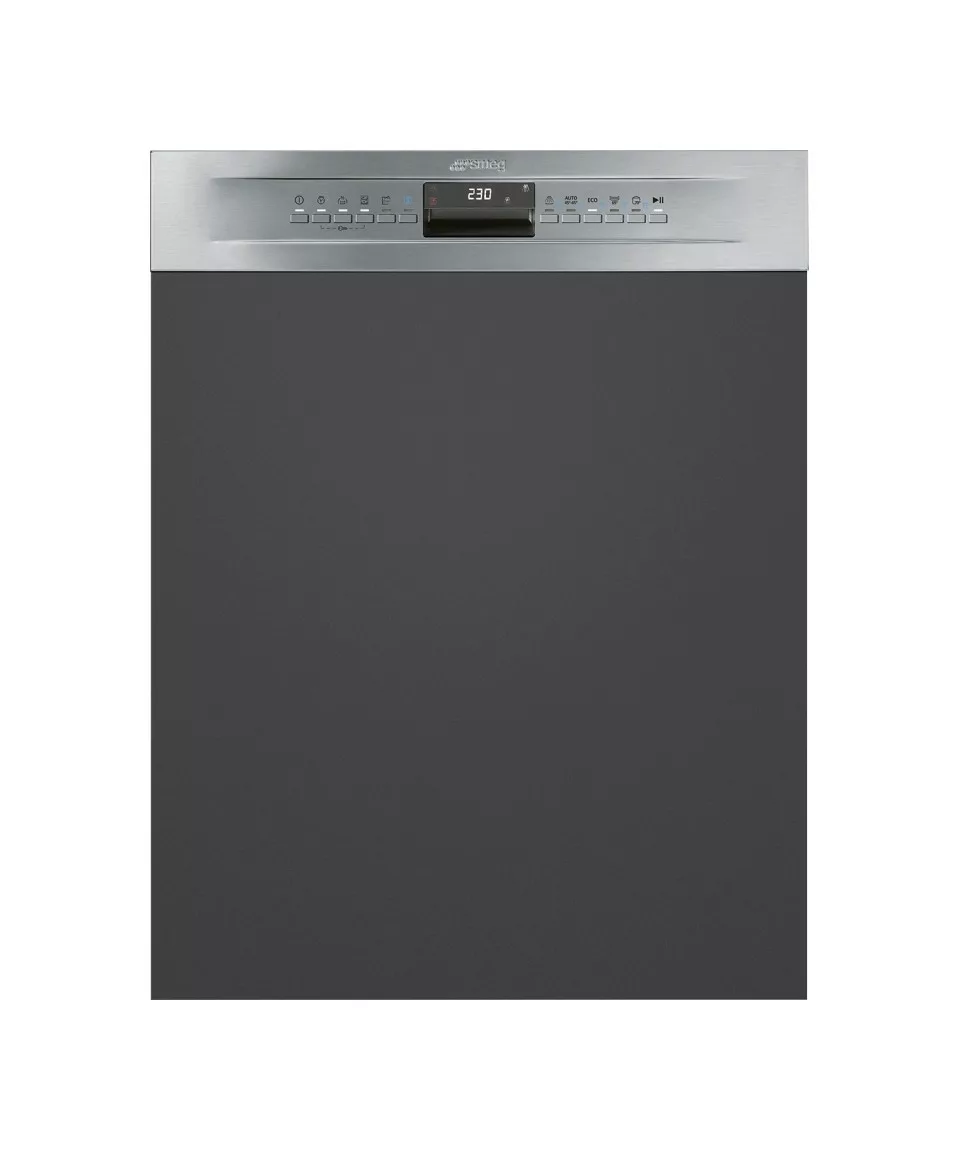

Partially integrated dishwasher cm. 60 – 13 place settings – stainless steel front panel – PL364CX – SMEG
Typology
Family: dishwasher
Trading height: 82 cm
Number covered: 13
Installation: Partially integrated installation
Trade width: 60 cm
Kitchen panel: Not included
aesthetics
Color: stainless steel
Finish: Anti-fingerprint
Aesthetics: Universal
Front panel color: anti-fingerprint stainless steel
Door type: Without frame
LED / display color: white
Color of the frets: silver (oropal gray)
Programs/Functions
Number of programs: 10 + 1
Soaking: Yes
Express 27′: Yes
Full Express 60′: Yes
ECO: Yes
Quiet (-2 dB): Yes
Car 45-65: Yes
Mixture: Yes
Intense: Yes
Hygiene 99.9%: Yes
Self-cleaning: Yes
Mug: Yes
Washing temperatures: 38, 45, 50, 55, 65, 70, 75 °C
Options
Dry Assist + Option: Yes
Delayed departure option: Up to 24 hours
FlexiZone 1/2 charging option: Yes
Special program option: Yes
baskets
Number of baskets: 3, FlexiDuo
Color of the baskets: Gray
Color of basket components: Gray
Handle: Made of plastic on the upper and lower basket
Upper basket: With fixed inserts
Glass holder: Yes
Height adjustment of the upper basket: on three levels (5 cm)
Lower basket: With 2 foldable inserts
Maximum plate size that can be loaded on the upper basket: 19.0 cm
Lower basket with drip inserts: Yes
Maximum plate size that can be loaded on the lower basket: 30.0 cm
Internal component color: Green
Technical characteristics
Control: Electronic
Display: start delay programming, program duration display, remaining time display
Door opening system: Yes
Display type: LED display (3 digits)
On/Off indicator: Yes
Salt deficiency indicator: Lights up
Rinse aid indicator: display
Program progress indicators: Yes
End of cycle display: acoustic signal
Washing system: Orbital
Drying system: Natural condensation, with Dry Assist + system for automatic door opening at the end of the cycle
Motor: Inverter 2.0
Third top syringe: Single
Water softener: Electronically controlled
Aquatest turbidity sensor: Yes
Flood protection system: Total Acquastop
Water supply: single; Cold/hot water up to 60°C – energy savings for hot water up to 35%
Maximum water hardness: 100°fH; 58 ° dH
Vapor protection: Made of plastic
Tank material: stainless steel
Filter: stainless steel
Hidden heating element: Yes

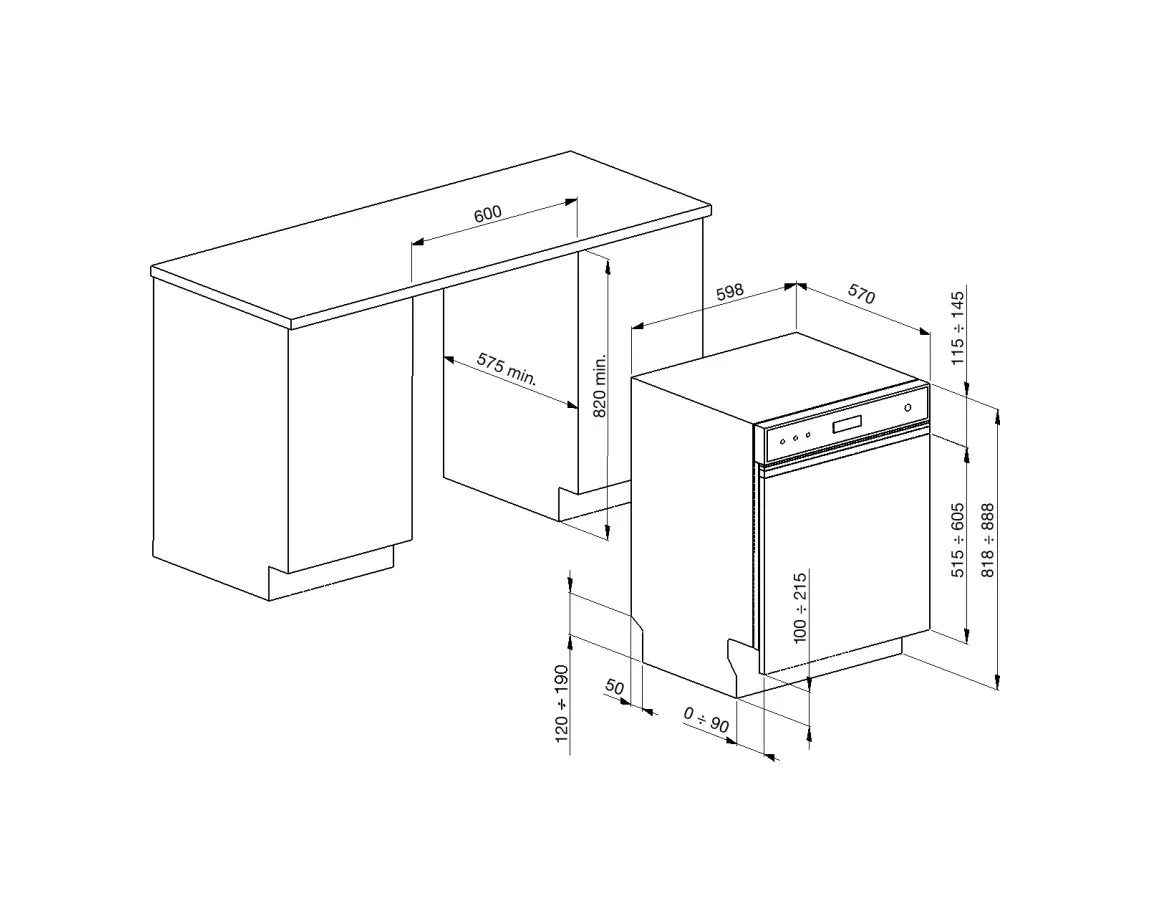

Minimum and maximum base height: 100 – 215 mm
Hinges: Balancing with a fixed pivot point
Adjustable feet: 7 cm, from 820 to 890 mm
Rear foot adjustable from the front: Yes

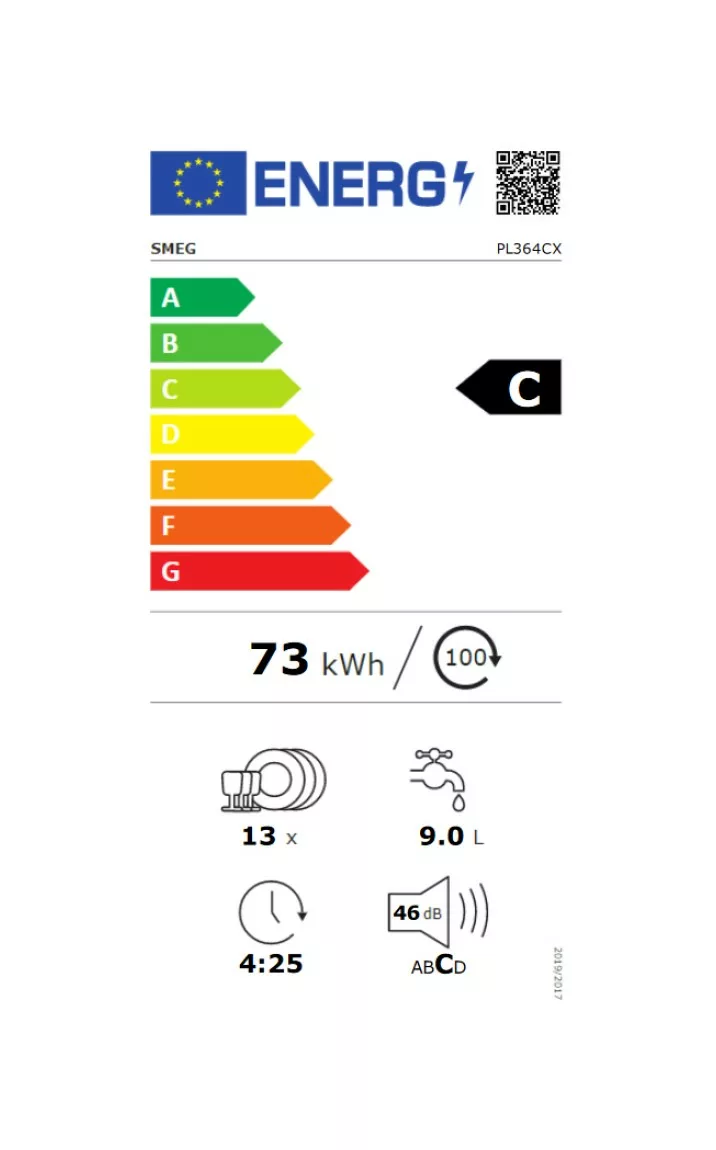

Performance/Energy Label – Reg. 2019
Energy efficiency class: C
Energy consumption [per 100 cycles, based on the Eco program]: 73 KWh
Rated capacity (ps): 13
Water consumption [per cycle]: 9.0 l
Program duration: 4:25 h: min
Airborne sound emission: 46 dB (A) re 1 pW
Airborne sound emission classes: C
Energy efficiency index (EEI): 43.8
Electrical connection
Installed power: 1800 W
Voltage: 220-240V
Connection type: single phase
Frequency: 50Hz
Power cable length: 140 cm
Logistical information
Product dimensions HxLxP (mm): 818x598x570
Accessories not included
Glass holder kit: KITGH
Base for dishwasher – white: KITPL60FABB
ORBITAL WASHING SYSTEM
This washing system consists of a double sprinkler, which, thanks to overlapping and simultaneous rotation, allows the water to reach the entire room evenly and achieve a perfect washing result.
FLEXIBLE BASKET
The two movable inserts that compose it, which slide on separate guides and are equipped with a handle for better grip, can be individually adjusted depending on the type of dishes to be washed, thus guaranteeing maximum loading flexibility.
