Description
Totally integrated dishwasher cm. 60 – 14 covered – ST323PT – SMEG
GUY
Product family: dishwasher
Trading height: 82 cm
Installation: Integrated fully integrated
Trade width: 60 cm
Kitchen panel: Not included
AESTHETICS
Color silver
Finish: Polished
Aesthetics: Universal
Front panel color: Silver (oropal gray)
Door type: silver (oropal)
LED / display color: white and blue
Color of the buttons: silver (oropal gray)
PROGRAM / FUNCTIONS
Number of programs: 10 + 1
Wet: yes
Full espresso – 60 minutes: yes
ECOLOGICAL: yes
Automatic sensor 45-65: yes
Mixture: yes
Intense: yes
Hygiene 99.9%: yes
Self-cleaning: yes
Ultra Express: yes
Crystal Pro: Yes
Crystal: yes
Washing temperatures: 45, 50, 65, 70, 75°C
OPTIONS
Dry Assist + Option: yes
Delay timer option: Up to 24 hours
FlexiZone 1/2 loading option: yes
Professional option: yes

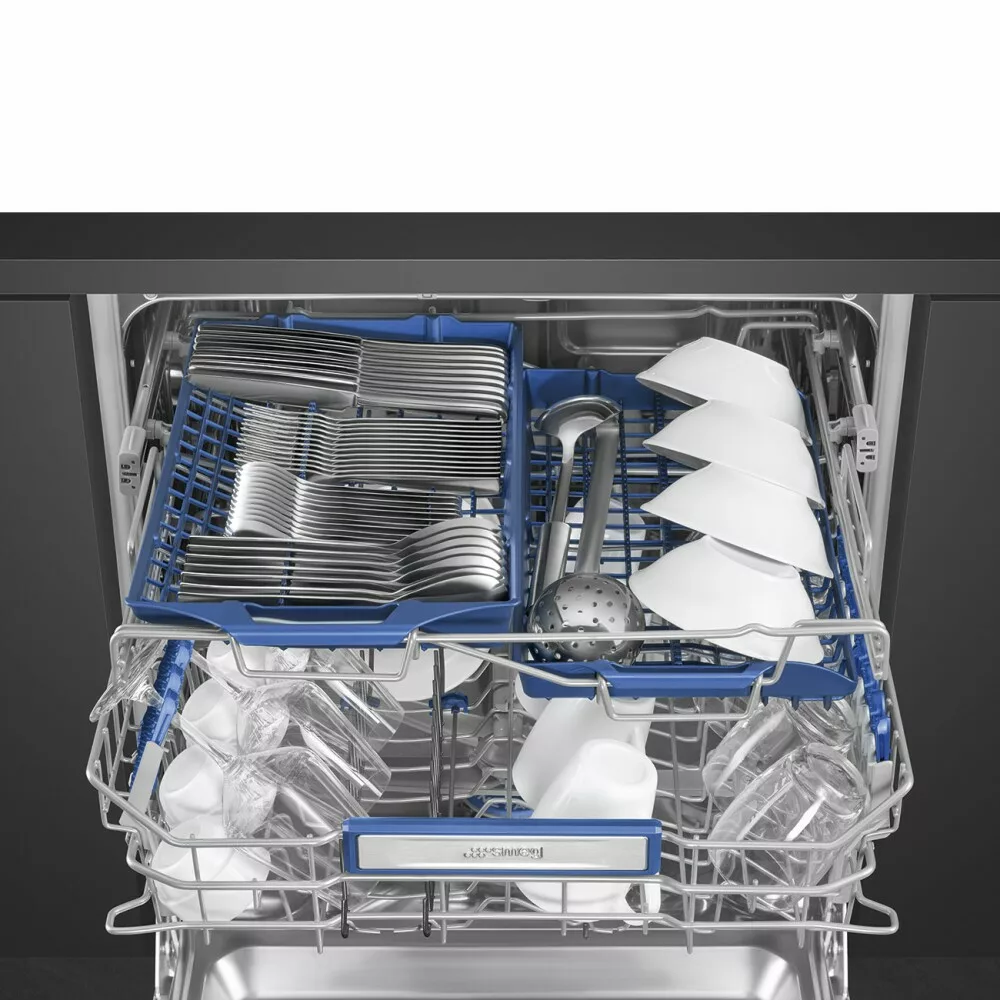

BASKETS
Number of baskets: 3, FlexiDuo
Basket color: gray
Color of basket components: Gray
Handle: Made of plastic with stainless steel inserts on the upper and lower basket
Upper basket: With 3 folding shelves
Cup holder: yes
Height adjustment of the upper basket: on three levels (5 cm)
Extra Glide slide rails: yes
Lower basket: With 4 folding shelves
Largest loadable plate in the upper basket: 19.0 cm
Lower basket with anti-drip inserts: yes
Largest loadable plate in the lower basket: 30.0 cm
Internal color components: Blue
TECHNICAL CHARACTERISTICS
Control: Electronic

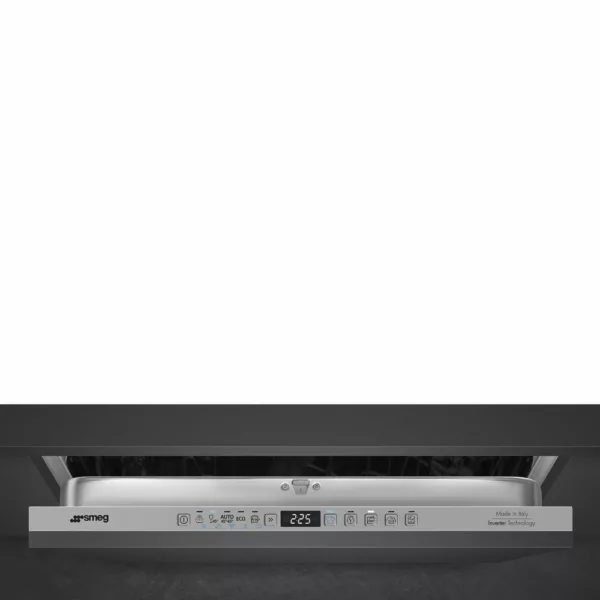

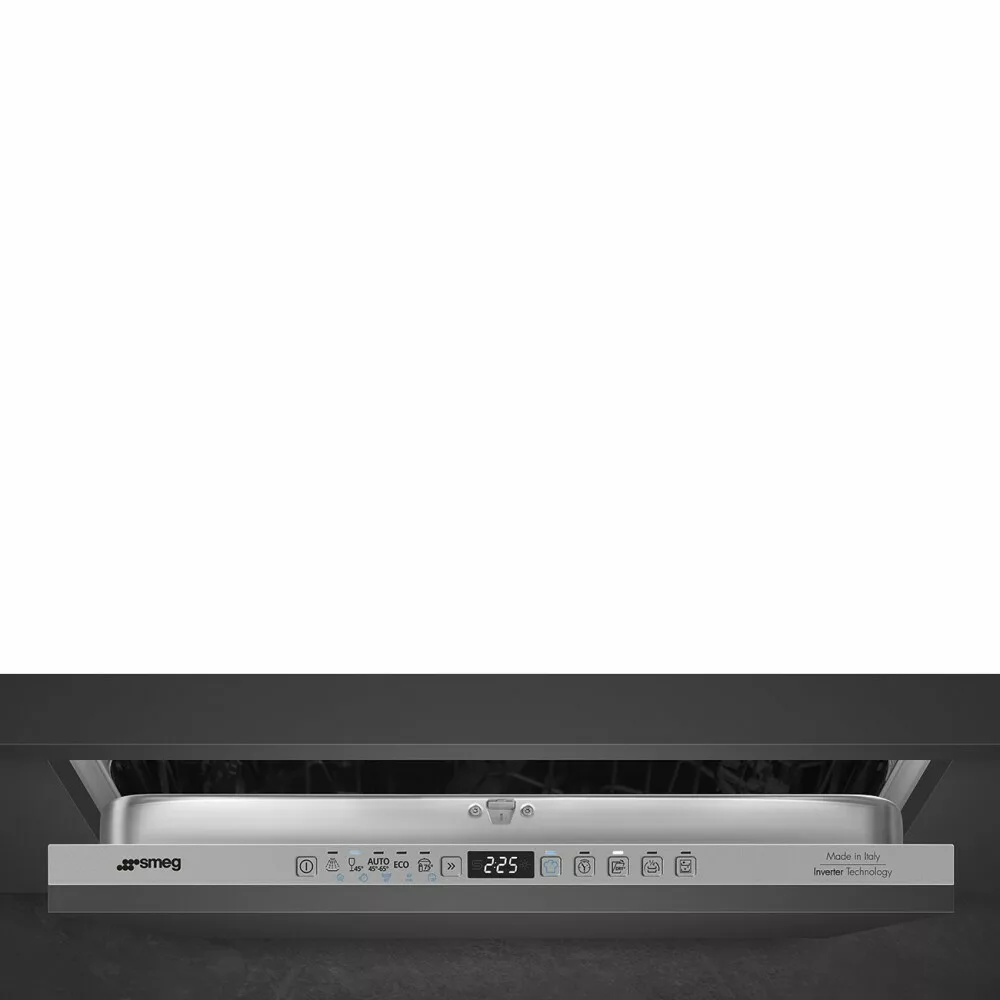

Screen: delay start, program time display, end time display
Door opening system: yes
Display type: LED display (3 digits)
On/Off indicator: Yes
Salt Light: Light
Rinse aid indicator: Lights up
Cycle end indicator: ActiveLight
Washing system: Planetary
Drying system: Natural condensation drying, with Dry Assist + automatic door opening system at the end of the cycle
The motor: Inverter 2.0
Third spray arm: Separate
Water softener: With electronic regulation
Aquatest turbidity sensor: yes
Flood protection system: Total Acquastop
Water supply: Separate; Cold/hot water max. 60°C – energy savings with hot water up to 35%
Maximum water hardness: 100°fH; 58 ° dH
Vapor protection: Made of plastic
Interior lighting: With white LED
Tank material: stainless steel
Filter: stainless steel
Hidden heating element: Yes
Minimum. and maximum base height: 50 – 215 mm
Minimum. and maximum weight of the front panel: 2 – 11 kg
Hinges: self-balancing, sliding, FLEXIFIT
Adjustable feet: 7cm, from 820 to 890 mm
Rear feet adjustable from the front: yes
PERFORMANCE/ENERGY LABEL NEW 2019
Energy efficiency class: C
Energy consumption [per 100 cycles, based on the Eco program]: 75 KWh
Rated capacity (ps): 14
Water consumption [per cycle]: 10.5 liters
Program duration: 4:25 h: min
Airborne sound emission: 42 dB (A) re 1 pW
Airborne sound emission class: B
Energy efficiency index (EEI): 43.8
ELECTRICAL CONNECTION
Connected load: 5450 W
Voltage: 400-415V
Connection type: three-phase
Frequency (Hz): 50Hz
Power cable length: 200 cm
LOGISTICAL INFORMATION

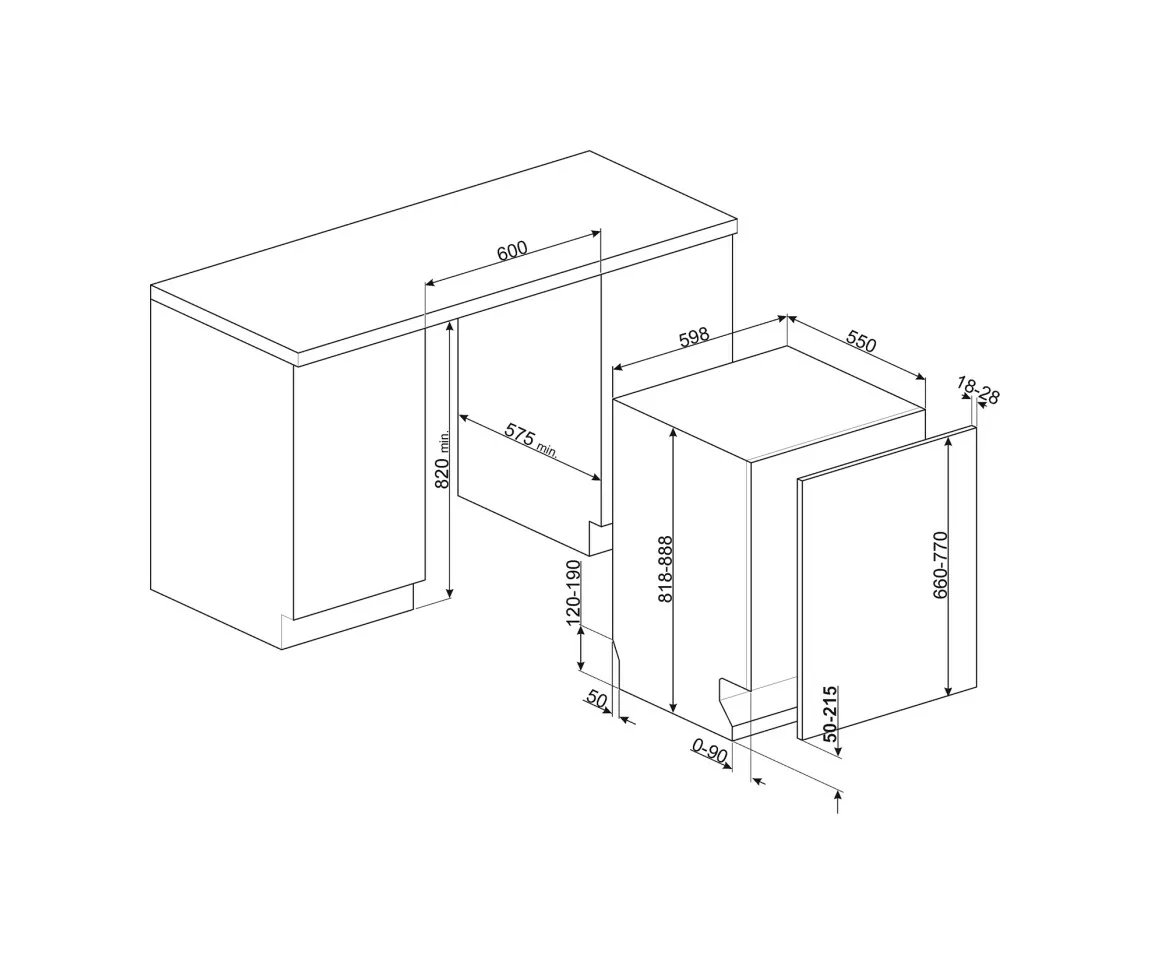

Product dimensions HxWxD (mm): 818x598x545
ACCESSORIES NOT INCLUDED
Glass holder kit: KITGH

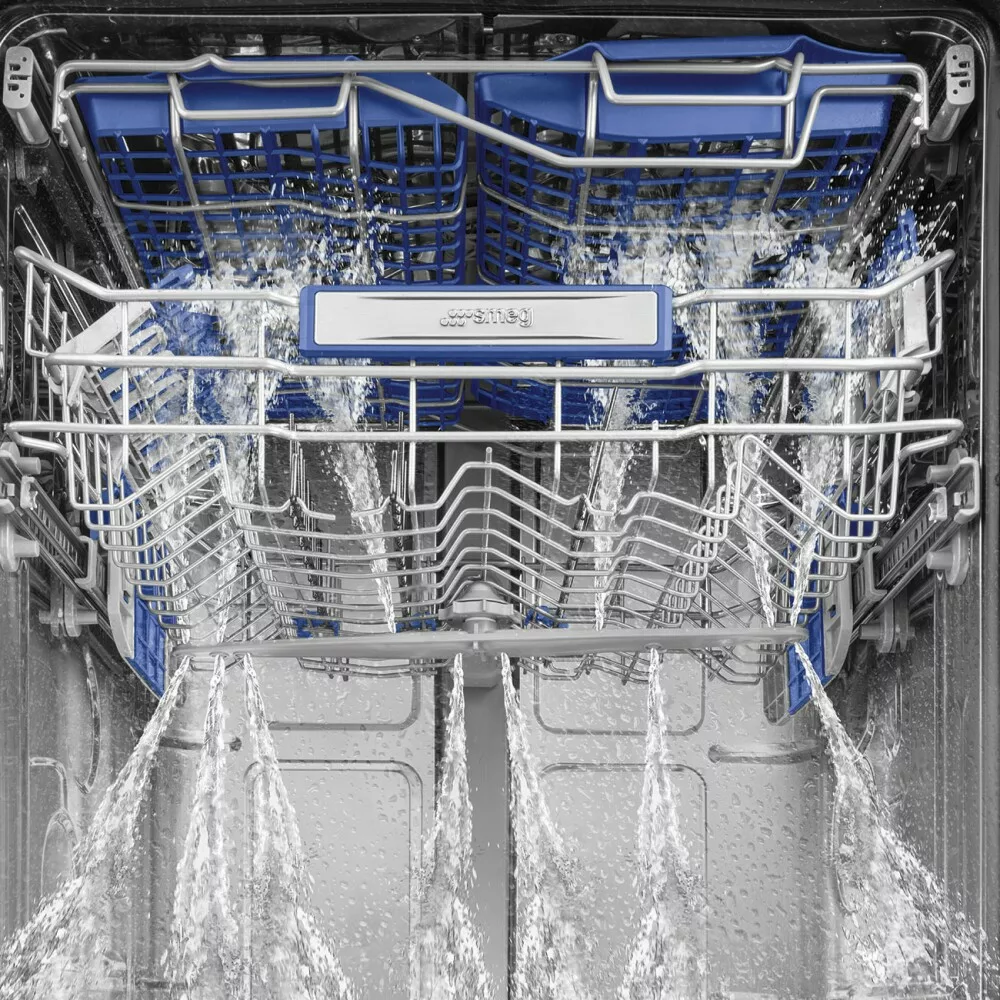

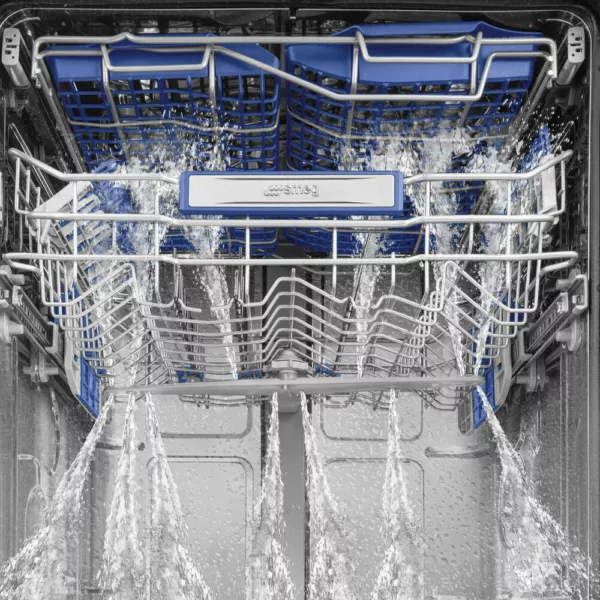

PLANETARY WASHING SYSTEM
The device, consisting of a circular holder and a double high-speed spray arm with simultaneous movement, ensures that the water reaches every point of the chamber, guaranteeing excellent washing results and low water consumption.
